SignatureGem LCD 4x5

SignatureGem LCD 4×5

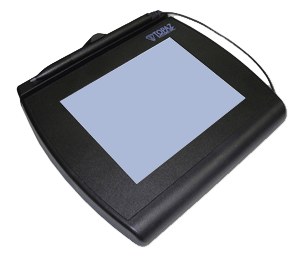

T-L766 model shown

Model Family
T-LBK766
Dual Serial/USB Backlit
Virtual Serial Backlit
Dual Serial/USB Backlit SE
Virtual Serial Backlit SE
T-LBK766-BHSB-R
T-LBK766-BBSB-R
T-LBK766SE-BHSB-R
T-LBK766SE-BBSB-R
SignatureGem LCD 4×5 includes all the high-quality electronic signature capture features of Topaz signature pads with the added feature of a backlit LCD interactive display, allowing users to see ‘electronic ink’ under the pen tip as they sign as well as navigate and display text and graphics.  The large signing area and rugged tempered glass signing surface make this a versatile pad for the most demanding applications.All Topaz products come bundled with our powerful software tools and support for the capture, binding, and authentication of electronic signatures. All software and updates are licensed for use with Topaz tablets at no extra charge.



Sensor/Pen Technology Warranty/ Ruggedness Connectivity & Security Meets Min. Signing Width Bundled Software Biometric Resolution and Authentication
Tempered glass with active pen 3 years, highly rugged USB, Serial, Ethernet (SecureSig™ System) Yes – 4.5″ All SigPlus and SigID, Pro developer tools, plug-ins, etc. 377 pps, 410 ppi, SigAnalyze
LCD Type Text Display Pen-tap Navigation Text Font and Size Tablet Identification Viewing Contrast
STN, backlit standard. 512 characters per screen at 12pt Yes – unlimited screens Yes – unlimited fonts Electronic model/serial Indoor/Outdoor Transflective
