IDLite 1×5 with Optical Sensor

Download IDLite 1×5 PDF Data Sheet

IDLite 1x5

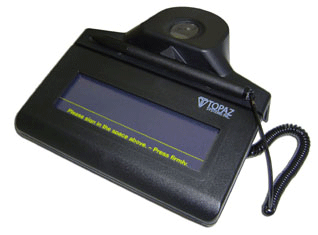

IDLite 1×5 with Optical Sensor

Model Family
USB Connection

The economical touch-sensitive IDLite 1×5 with Optical Sensor pad with an optical sensor is designed for the capture of high-quality, high-resolution fingerprint images (500×500 dpi). In addition, fingerprint authentication is available for verifying a user against their own saved fingerprint template. It also provides the benefits of secure biometric forensic signatures.

This integrated signature pad with optical fingerprint sensor comes bundled with our powerful software tools and support for the capture, binding, and authentication of eSignatures. Additionally, the IDLite 1×5 with optical sensor is supported by SigIDp1™ electronic fingerprint software.


  • 3rd-generation touchpad signing surface for cost efficiency
  • Optical fingerprint sensor for high-resolution
    fingerprint imaging
  • High-quality biometric and forensic capture
  • Topaz software suite bundled at no additional cost for complete signing and signature solution customization techniques

Click here to download SigIDp1 biometric fingerprint recognition software.For more information or to purchase, please contact us.

Sensor/Pen TechnologyWarranty/ RuggednessConnectivity & SecurityMeets Min. Signing WidthBundled SoftwareBiometric Resolution and Authentication
Touchpad with passive stylus1 year, long-life touchscreenUSB
(HID Compliant)
Yes – 4.3″All SigPlus and SigIDp, Pro developer tools, plug-ins, etc.377 pps, 410 ppi, SigAnalyze
ID Sensor TypeImage Capture MethodMatching/ VerificationFingerprint Sensor Size
OpticalDry, Moist or RoughHighly compressed, digitally stored fingerprint data20mm x 30mm
